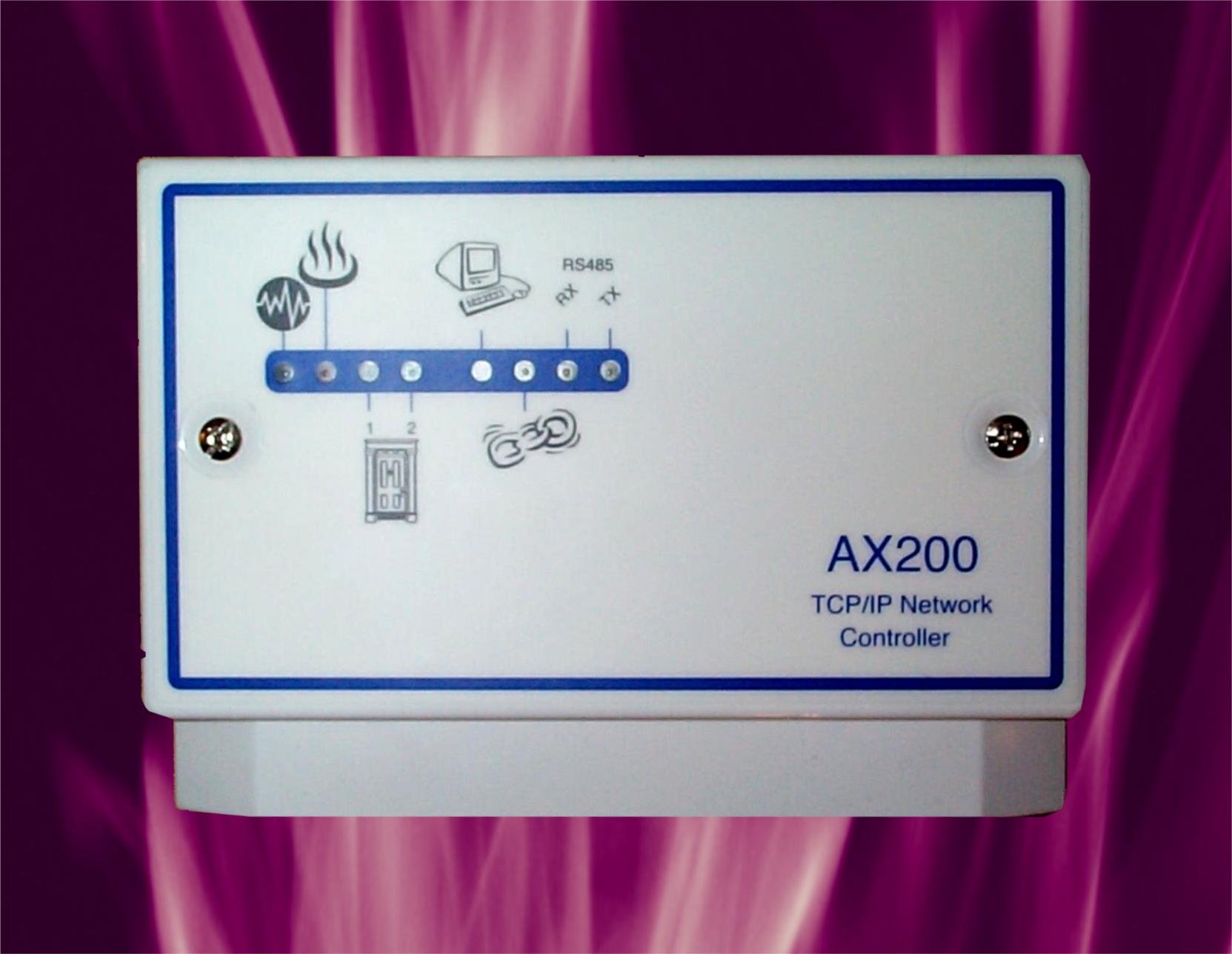

AX200 TCP/IP Controller
Part No. 105-201
AX200 Brochure
AX200 Installation Guide
AX200 Connection Diagram
AX200 Connection Diagram In / Out Readers

Features

• Total card management - access control, time and attendance, photo ID printing and exception monitoring

• Standard query language (SQL)

• Ethernet TCP/IP 10MB communication with encryption

• Plug & Play LAN and serial connection

• Wide Area Network support

• 256 time zones

• up to 256 readers

• 65,535 access levels

• 2,000 / 4,000 / 16,000 cards per controller

• Transactions stored locally at the controller

• Time & attendance reports

• Add/Replace card Wizard

• Import / Export database

• New Device Wizard

• Integrated support for offline controllers with DTU (data transfer unit)

• E-mail reports, alarms, exceptions

• Automatic database repair and maintenance

• Up to 2,000 cards or 1,000 cards and PINcode - expandable up to 16,000 cards per controller

• Multi-language support

• Easy to install

• Supports multiple reader technologies

• Selectable door open & extended door open time

• Deadlock

• High security mode

• Latch function (permanent unlock)

• Scheduled backup utility

• Windows™ 95, 98SE, NT, 2000, ME & XP

The AX200 is an Ethernet based (TCP/IP) high speed controller.  Two AX100 intelligent door interfaces can be connected to each AX200 - with its modular design, the system can be expanded up to 256 doors with 16,000 cardholders.

The PC software included automatically detects the jumper-less controllers.

The extremely small controllers can easily be fitted local to the door and allows connection to existing local and wide area networks using low-cost standard CAT5 cabling.  This provides an economical way to control doors requiring long cable runs or for remote offices and sites without the need for costly dial-up modems or cabling.

Automatic setup and wizards reduces not only the installation and maintenance time considerably but also provides the novice or infrequent user guidance to quickly perform a wide range of tasks.
