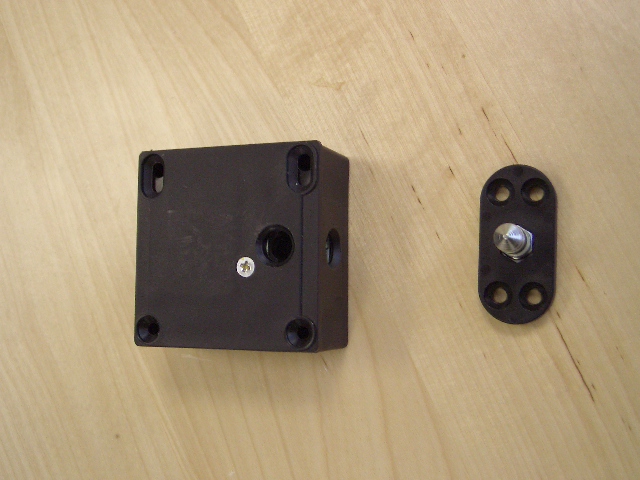

Universal Cabinet Lock - UCL-10
Part Nos. 310-226 (Fail-safe version) 310-227 (Fail-secure version)

UCL-10 Features

• available fail-safe or fail-secure

• 12vDC 160mA

• locked / unlocked monitoring

• holding force > 116lb (80kg)

• self-centre locating pin

• fixing screw hole 3.5mm

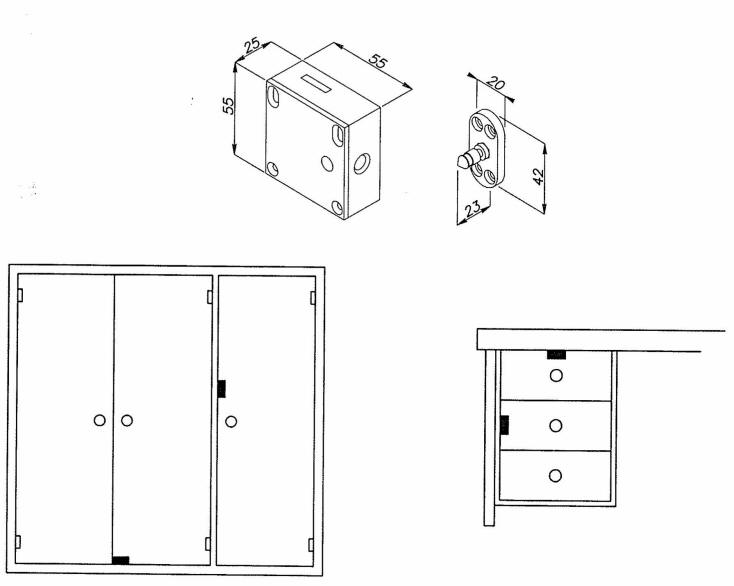

The UCL-10 cabinet lock can easily be fitted to a range of cabinets and enclosures.  The compact size of 55 x 55 x 25mm with side or front locking allows installation in even the tightest spaces.

A built-in micro-switch provides status of locked / unlocked position.
