i-BOX & Sensors

Security, environmental monitoring & remote site monitoring

Safeguard equipment and systems 24/7/365

Click here for more info

i-BOX—Exception Monitoring

Part No. IC-I-BOX

The i-BOX unit is an Ethernet controller that plugs directly into the IP network.

The i-BOX has a temperature, humidity and light sensor built-in.
AX series graphical user interface software for configuration and support for up to 256 i-BOX units per system.

Built-in alarm reporting, photo ID, who’s in / out, configuration and user wizards

Requires IC-PSU 12v DC plug in power supply. Dimensions: 125 x 95 x 30mm


i-BOX—Exception Monitoring

Part No.IC-I-BOX-48




The i-BOX unit is an Ethernet controller that plugs directly into the IP network.

The i-BOX has a temperature, humidity and light sensor built-in.
AX series graphical user interface  software for configuration and support for up to 256 i-BOX units per system.

Built-in alarm reporting, photo ID, who’s in / out, configuration / user wizards - 48 volt version
Dimensions: 125 x 95 x 30mm



12v Plug Top Power Supply

Part No. IC-PSU

12v Plug Top Power Supply

UK version 12vDC plug top power supply unit with 2.5 metre terminated connector.



UK version 12vDC plug top power supply unit with 2.5 metre terminated connector.

  12v Plug Top Power Supply—Export

Part No. IC-PSU-EXP

12vDC plug top power supply unit with 2.5 metre terminated connector.
Includes adapters for use in UK, Europe, USA, Australia .

  Door Contact

Part No. IC-AX25-DC

Detects the door contact position,
includes mini DIN through jack and disc magnet. for use with cabinet handles

Door / Panel Position Sensor

Part No. IC-INT-DC

Detects the position of the side panels or doors,
includes 2.5 metre terminated lead with FCC68 connector and disc magnet.

For connection to ports 1—14 on i-BOX

Temperature Sensor

Part No.IC-TS

Standard temperature sensor range  –20ºC to +80ºC,
includes 2.5 metre terminated lead with FCC68 connector.



Temperature, & Humidity Sensor

Part No. IC-HM

High accuracy temperature, condensation and humidity sensor,
includes 2.5 metre terminated lead with FCC68 connector.



Temperature & Door Contact Sensor

Part No.IC-TS-DC

Combined standard temperature and door position sensor,
includes 2.5 metre terminated lead with FCC68 connector.

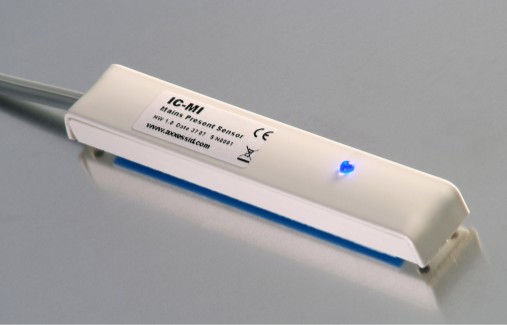

Mains Present Monitoring Sensor

Part No. IC-MI

Monitors the availability of mains power,
includes 2.5 metre terminated lead with FCC68 connector.

Light Level & Door Contact Sensor

Part No. IC-LS

Combined light level and door position sensor,
includes 2.5 metre terminated lead with FCC68 connector.

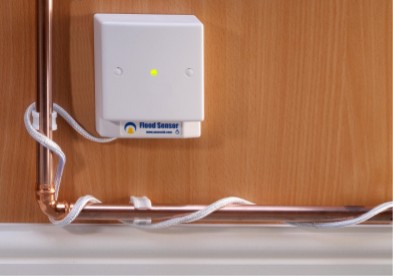

  Flood Sensor with 5 metres flood cable

Part No. IC-FS

Flood sensor with 5 metres of water sensing cable,
includes 2.5 metre terminated lead with FCC68 connector and 15 cable clips
.

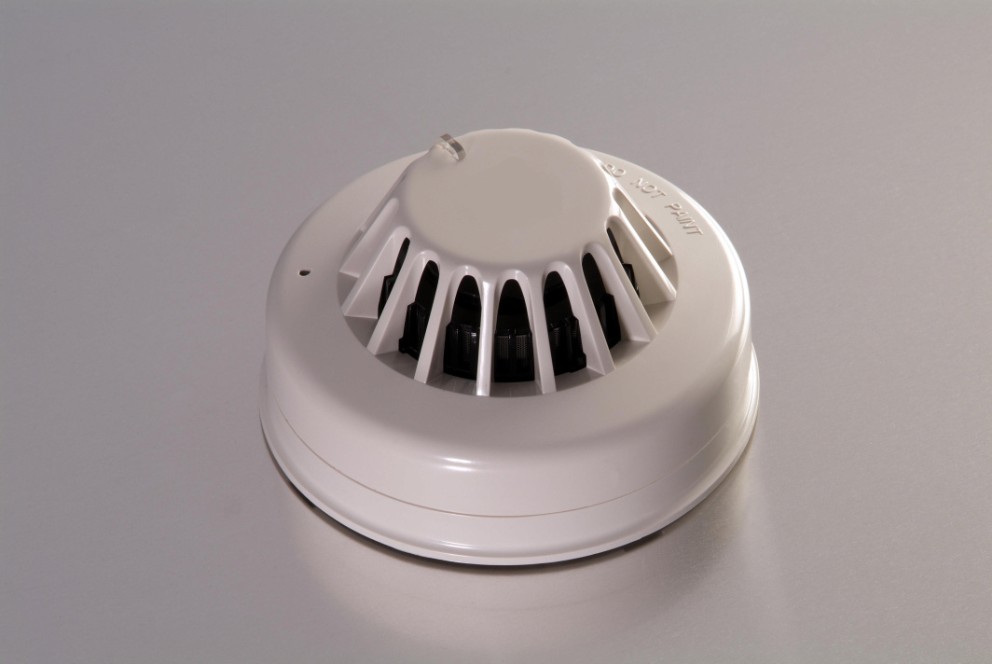

Smoke & Temperature Detector

Part No. IC-SD

Combined optical smoke and temperature detector
includes 2.5 metre terminated lead with FCC68 connector.

Intrusion / Movement PIR

Part No. IC-INT-P

Detection of people for intrusion or presence
includes 2.5 metre terminated lead with FCC68 connector.

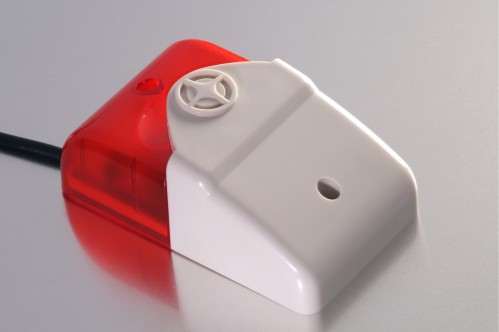

Sounder / Beacon Module

Part No. IC-ASB

Combined sounder and beacon for audio and visual warning
includes 2.5 metre terminated lead with FCC68 connector.
Connects to 9 way D on i-BOX

Fan Fail Sensor for fan tray

Part No. IC-MFT

Fixed temperature alarm and fan fail sensor,
includes 2.5 metre terminated lead with FCC68 connector
.

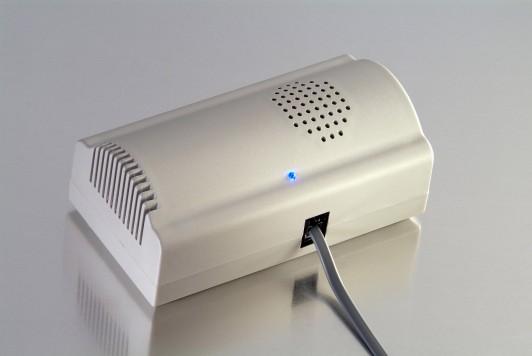

Dust Particle Sensor

Part No. IC-DPS

Monitors the concentration of dust particles in the air flow,
includes 2.5 metre terminated lead with FCC68 connector.

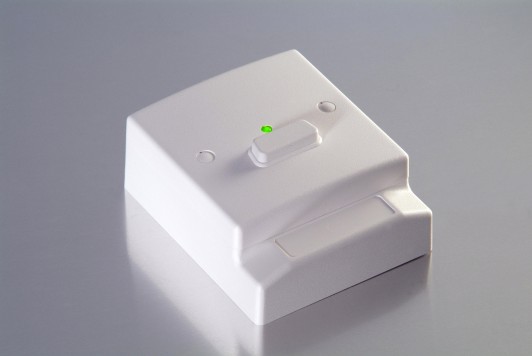

Inputs / Output Module

Part No. IC-IO

Two general purpose inputs and 1 relay output module to interface to auxiliary equipment

Air Flow Sensor

Part No. IC-AF

Monitors air flow,
includes 2.5 metre terminated lead with FCC68 connector
.

Extension Cable

Part No. IC-2.5MCE

2.5 metre extension cable—to extend the distance between the i-BOX and sensor.

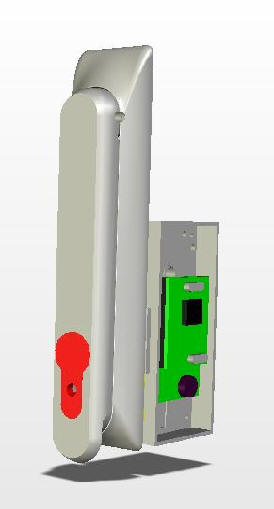

Internal Proximity Cabinet Handle

Part No. IC-AX25-CC

Integrated proximity access locking handle with built-in controller for Cooper B-Line racks or Emke hole spacing.
In standalone mode, the handle allows for cards to be added and deleted using a program card.
Associated delete cards which are retained by the administrator are used to delete the associated access card if lost or stolen.

In standalone mode an IC-PSU is required.  For online operation the unit is powered by the i-BOX

CC signifies the reader colour: specify: BK for Black, BL for Blue, GY for Grey

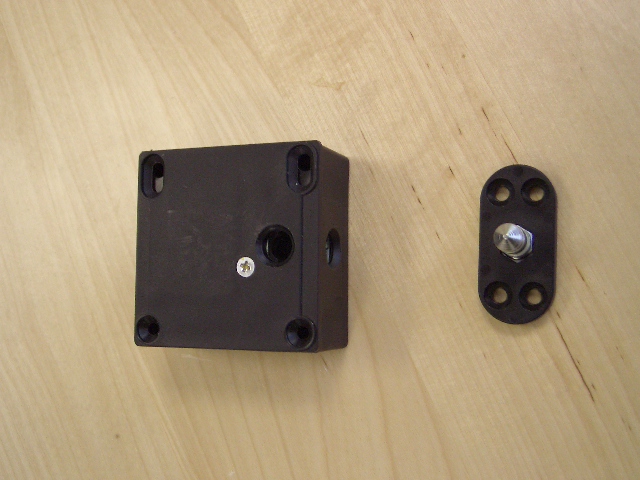

Remote Cabinet Lock

Part No. IC-LOCK

 For remote unlocking / locking of cabinets / lockers and door position status.
Connection to i-BOX sensor ports (maximum 14 per i-BOX)
.

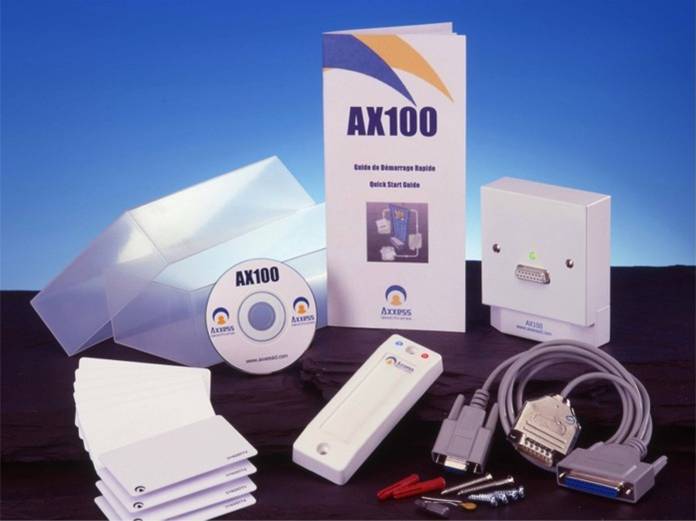

AX100i Kit

Part No. IC-AX100-X-CC

One door access control kit, comprising AX100 controller, 1 x proximity reader, 3 cards or keyfobs and
mini DIN cable for connection to i-BOX door port.

 X  signifies the credential type: specify C for cards or F for keyfobs

CC signifies the reader colour: specify WH for white, GG for graphite grey , BK for black

  AX Program Card

Part No. IC-PCARD

AX series program card , used to add and delete cards from the system

AX  Delete Card

Part No. IC-DCARD

AX series delete card, used to delete user card from system.

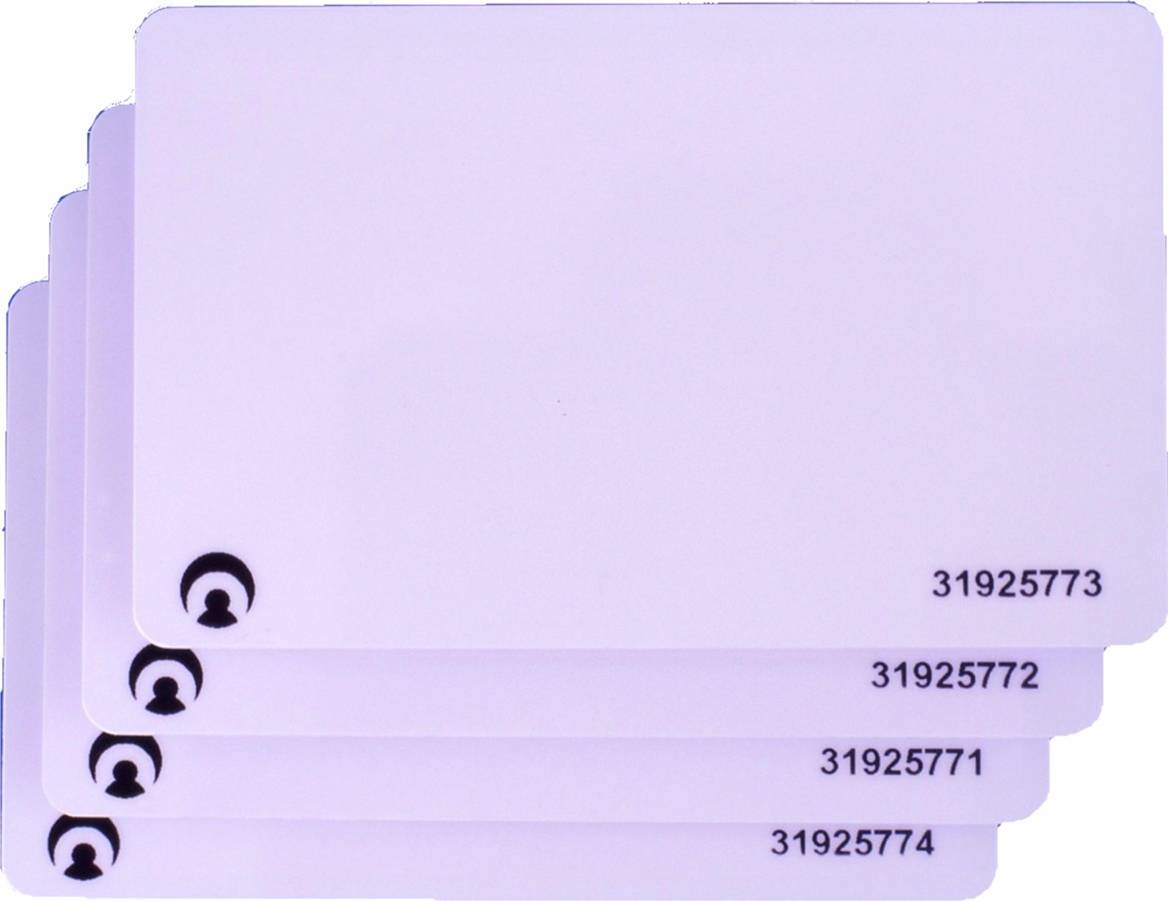

AX User Card

Part No. IC-UCARD

AX series ISO user card, encoded and numbered, used to add users to the system

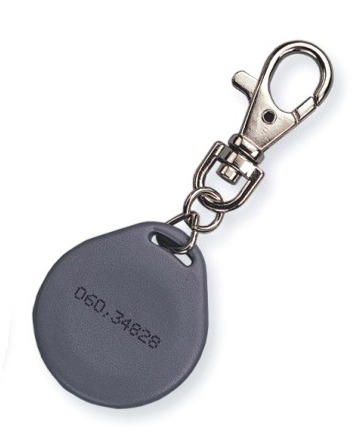

AX User Keyfob

Part No. IC-KF

AX series user keyfob, encoded and numbered, used to add users to the system
